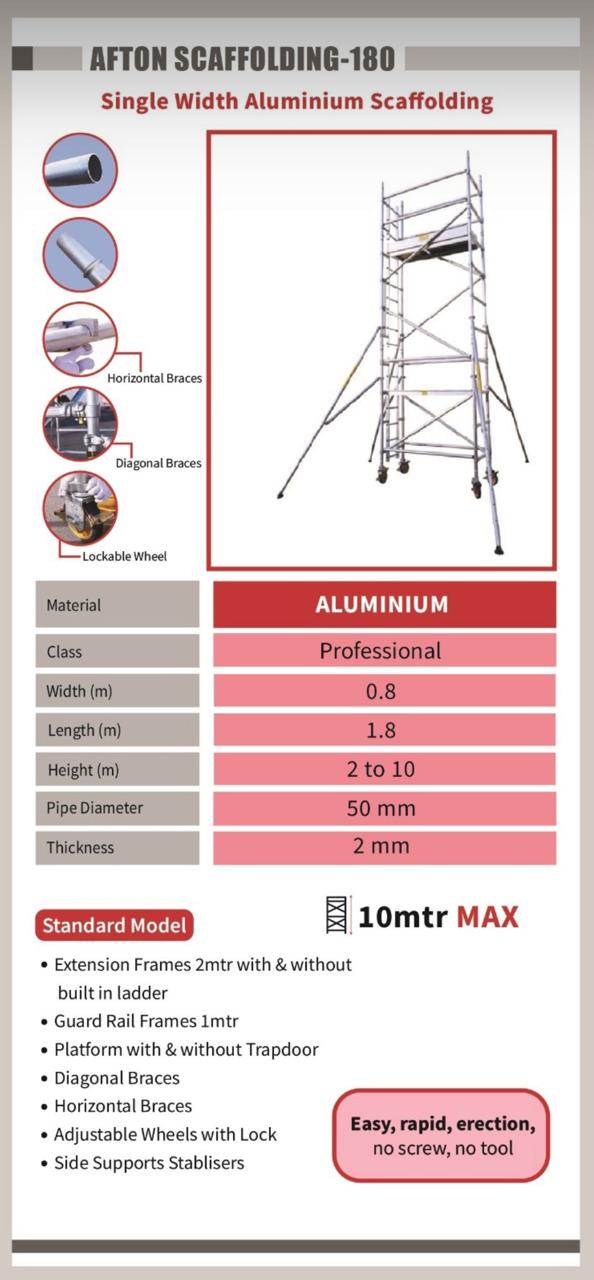

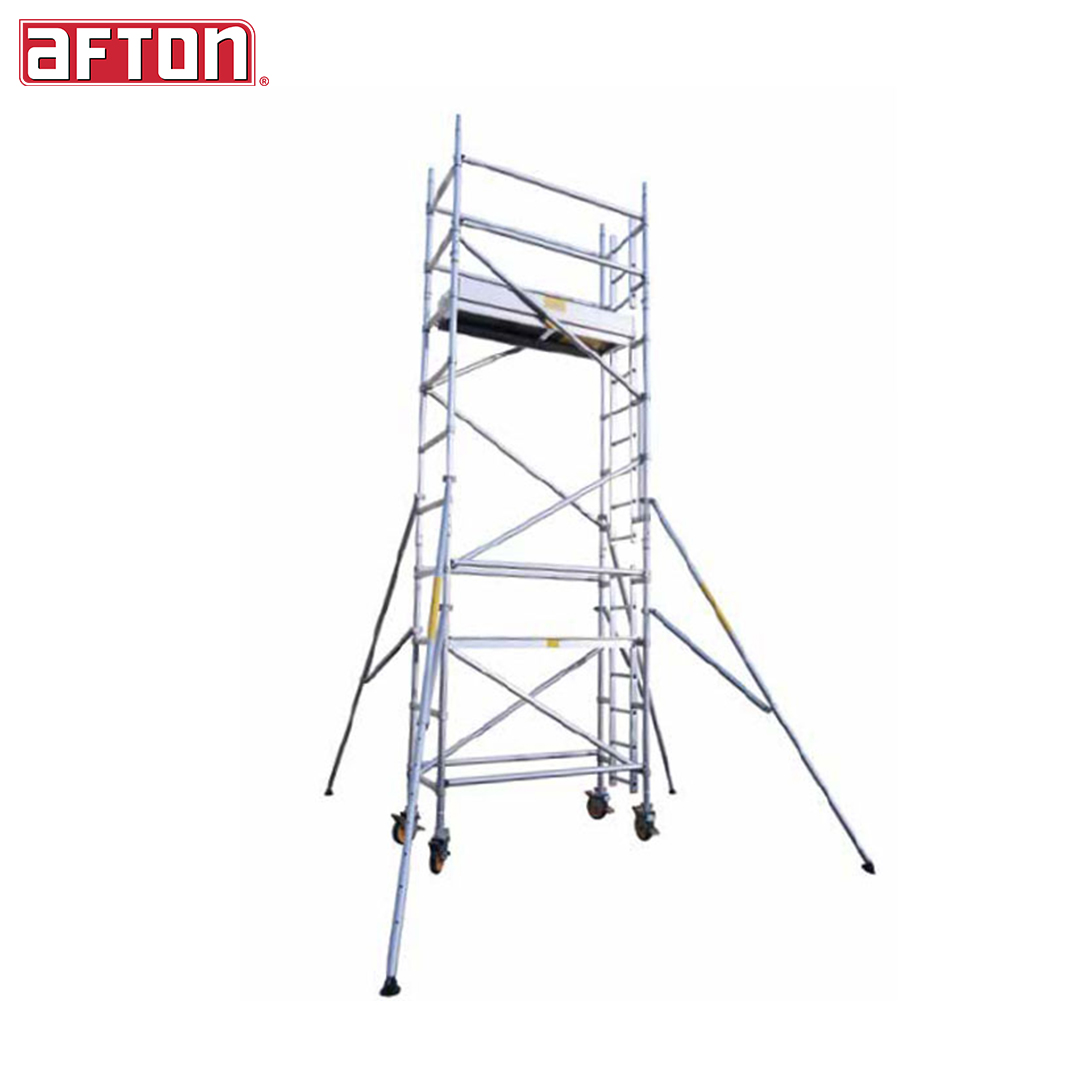

AFTON Aluminum Scaffolding – Single Width Mobile Tower
د.إ1,532.00 – د.إ6,600.00Price range: د.إ1,532.00 through د.إ6,600.00
The AFTON Aluminum Scaffolding Single Width Mobile Tower is the ultimate safe and compact access solution designed specifically for narrow, confined work areas. Featuring a streamlined 0.80 m × 1.80 m platform, an impressive adjustable height up to 12.00 m, and a robust 200 kg load capacity, it delivers rock-solid stability and rapid mobility for high-reach tasks where space is limited.
Key Points
-
Single width design (0.80 m × 1.80 m) makes it ideal for navigating narrow corridors and tight job sites.
-
Adjustable platform height (2.00 m to 12.00 m) easily adapts to a vast range of vertical access requirements.
-
200 kg safe working load Platform – reliably supports workers, heavy tools, and materials.
-
High-grade aluminum construction ensures an ultra-durable, lightweight, and corrosion-resistant frame.
-
Lockable caster wheels & adjustable outriggers provide effortless rolling mobility and concrete stability on uneven ground.
-
Quick assembly modular system allows fast setup and teardown, significantly reducing site downtime.
Advantages
-
Space-saving layout provides safe elevated access where standard-width scaffolding cannot fit.
-
Boosts job site efficiency through a tool-free, fast modular assembly process.
-
Industrial-grade durability stands up to harsh weather and frequent use with virtually zero rust or upkeep.
-
Certified worker safety with secure locking casters and stabilizing outriggers that minimize tipping risks.
Applications
-

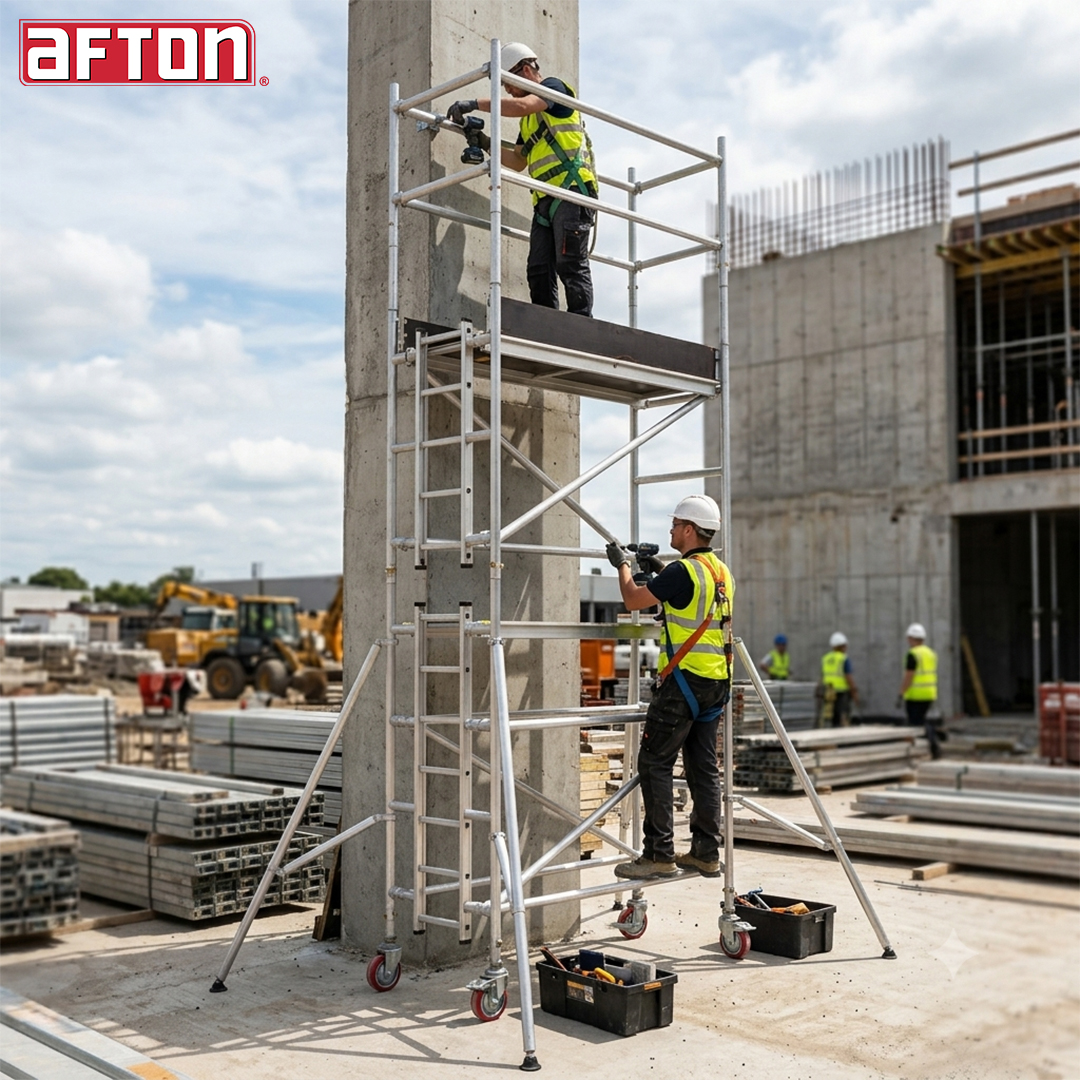

Construction & Finishing Work: Perfect for plastering, painting, and cladding in tight, restricted spaces.
-
Electrical & MEP Installations: Ideal for high-reach HVAC ductwork, cable trays, lighting, and fire protection systems.
-
Industrial Facilities & Warehouses: Designed for factory maintenance and plant inspections in narrow aisles.
-
Commercial Facility Maintenance: Suitable for deep window cleaning, facade repairs, and general building management.
| TOWER CODE | SIZE | AFTSW2 | AFTSW3 | AFTSW4 | AFTSW5 | AFTSW6 | AFTSW7 | AFTSW8 | AFTSW9 | AFTSW10 | AFTSW11 | AFTSW12 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TOWER HEIGHT | 2.0 M | 3.0 M | 4.0 M | 5.0 M | 6.0 M | 7.0 M | 8.0 M | 9.0 M | 10.0 M | 11.0 M | 12.0 M | |
| PLATFORM HEIGHT | 1.0 M | 2.0 M | 3.0 M | 4.0 M | 5.0 M | 6.0 M | 7.0 M | 8.0 M | 9.0 M | 10.0 M | 11.0 M | |
| WORKING HEIGHT | 3.0 M | 4.0 M | 5.0 M | 6.0 M | 7.0 M | 8.0 M | 9.0 M | 10.0 M | 11.0 M | 12.0 M | 13.0 M | |
| LADDER FRAME | 2.0 M | 1 | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 |
| EXTENISON FRAME | 2.0 M | 1 | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 |
| GUARDRAIL FRAME | 1.0 M | 2 | 2 | 2 | 2 | 2 | ||||||

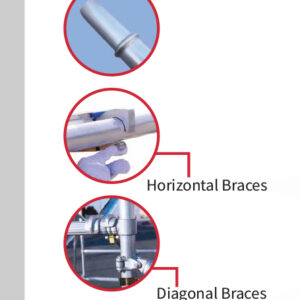

| HORIZONTAL BRACE | 1.8 M | 2 | 4 | 4 | 6 | 6 | 7 | 8 | 9 | 10 | 10 | 12 |
| DIAGONAL BRACE | 2.0 M | 2 | 2 | 4 | 5 | 8 | 10 | 10 | 12 | 12 | 14 | 16 |
| STABILIZER | 3.0 M | 4 | ||||||||||
| STABILIZER | 4.0 M | 4 | 4 | 4 | ||||||||
| STABILIZER | 6.0 M | 4 | 4 | 4 | ||||||||
| CASTER WHEEL | 6" | 4 | 4 | 4 | 4 | 4 | 4 | |||||
| CASTER WHEEL | 8" | 4 | 4 | 4 | 4 | 4 | ||||||
| PLATFORM TRAPDOOR | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
| Height |
10m ,11m ,12m ,2m ,3m ,4m ,5m ,6m ,7m ,8m ,9m |
|---|
